Precautions for Circuit Card Assembly
The electrical components of most electronic devices are connected to each other with a printed circuit board (PCB). These are assembled through the process known as CCA or PCBA. During this manufacturing process, all the electronic components are attached to a substrate layer that gives the board its rigidity. The most common substrate layer is fiberglass, but metal core and other materials are also available. This substrate layer also serves as the base for all soldering operations.
circuit card assembly are complex devices that only work smoothly if all the component parts are placed according to strict design guidelines. These guidelines ensure that the board meets all safety requirements and is ready for production. They include design rules, layout design, component placement, and routing.
During this stage, the manufacturer uses an automated machine to put various SMDs or other component parts on the PCB. The PCBs are then passed to the soldering process. In the soldering phase, the manufacturer adds molten copper to each pad and then heats it with a soldering iron to create a strong bond between the components and the surface of the board.
Safety Precautions for Circuit Card Assembly
This is an essential step in the process. In addition to ensuring that all connections are made correctly, it also protects the integrity of the circuit board and reduces any chance of damage during assembly. This is especially important when it comes to high-speed signals, which require careful attention.

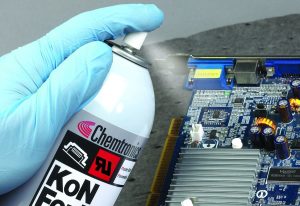

When assembling PCBs, the most important safety precaution is to wear proper clothing and follow clean room procedures. This includes wearing a hair cover, face mask, and lint-free gown or smock to keep out dust and particles that could damage the circuitry. It is also crucial to use an anti-static brush and cleaning agent, such as isopropyl alcohol or acetone, to remove any dirt or residue from the surfaces of the boards.
Once all the components are placed, the next step in circuit card assembly is to route them. This involves connecting the traces that carry the electrical signals between the different parts of the circuit board. In order to do this, it is crucial that the traces are wide enough to carry the current and that there is adequate clearance between them to avoid short circuits.
It is also important that all components are oriented in the same direction on the circuit board. This can simplify the assembly process and eliminate mistakes caused by incorrect positioning of components. For example, ICs should always be oriented with pin one in the upper left corner. This will help the assembly team quickly identify the correct orientation for each IC.
It is also important to allow space for escape routing and bus routing on the internal layers of the circuit board. Otherwise, these routes may get choked with signal return paths. In addition, the traces for these high-speed signals should not run parallel to the power supply traces. This will prevent the signals from being interrupted by power or ground traces.
